Specifications below:
Parameter Parameter | 6S2P-3 6S2P-30kw 0kw | 6S4P-60k 6S4P-60kw w | |
PV input | Max input power(W) | 45000 | 72000 |
Max input Voltage(V) | 1000 | 1000 | |
MPPT operation volatge(V) | 180-900/630 | 180-900/630 | |
Number of MPPT channels | 3 | 4 | |
Max input current(A) | 36/36/36 | 36/36/36/36 | |
Max scc(A) | 42/42/42 | 42/42/42/42 | |
AC output data（on-grid) | Rated powerW) | 30000 | 60000 |
Max apparent power (VA) | 30000 | 60000 | |
Rated Voltage(Vac) | 380V/400V，3L/N/PE | 400V，3L/N/PE | |
Rated frequency(Hz) | 50/60 | 50/60 | |
Max output currentA) | 45 | 87 | |
Power Factor | ~1(0.8~0.8) | ||
AC output data（off-grid) | Rated output powerW) | 30000 | 60000 |
Max apparent output power(VA) | 30000 | 60000 | |
Rated output voltage(Vac) | 380V/400V，3L/N/PE | 400V，3L/N/PE | |
Rated output frequency(Hz) | 50/60 | 50/60 | |
Max output current(A) | 45 | 87 | |
Battery Pack data | Operation Voltage(V) | 510~692 | 510~692 |
Communication | CAN | CAN | |
Battery type | 102V50AH | 102V50AH | |
Serial¶llel quantity | 6S2P | 6S4P | |
Single cluster capacity(Ah) | 50 | 50 | |
Total capacity (KWh) | 61.44 | 122.88 | |
Cycle life | ＞4000 | ＞4000 | |
Product Overview
Energy Storage Capacity: A 30kW energy storage pack can store up to 30 kilowatt-hours (kWh) of energy, while a 60kW energy storage pack can store up to 60 kWh. This capacity determines the amount of energy that can be stored and used during periods of low solar generation or at night.

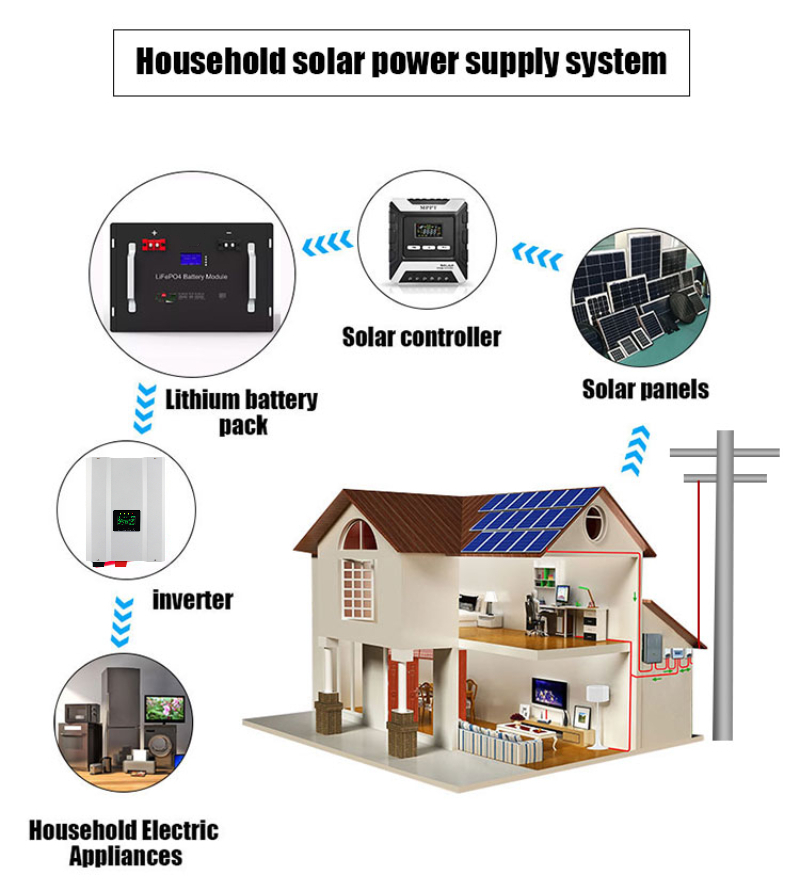

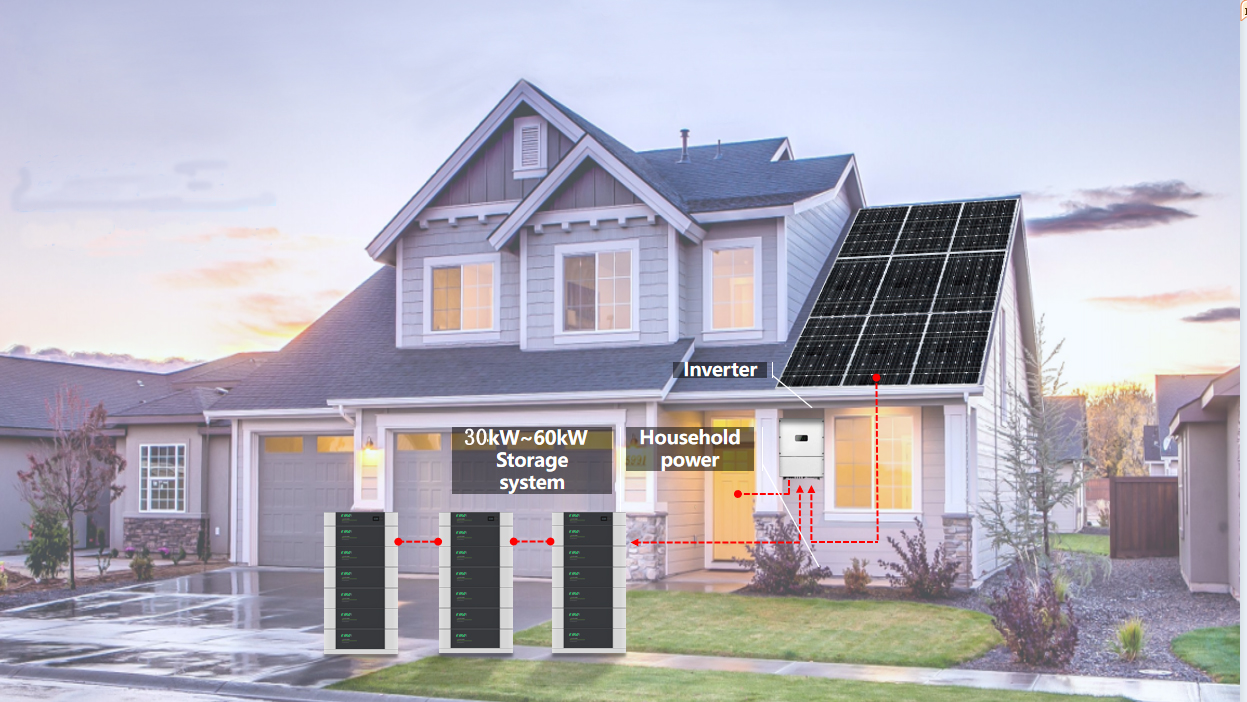

Solar Energy Integration: The energy storage pack is designed to integrate with solar power systems. It stores excess energy generated by solar panels during the day and releases it when the demand for energy exceeds the solar generation capacity, providing a continuous and reliable power supply.
Renewable Energy Integration: Energy storage packs facilitate the integration of renewable energy sources, such as solar or wind, into the grid. They help smooth out fluctuations in renewable energy generation by storing excess energy and releasing it when needed, ensuring a stable and reliable power supply.

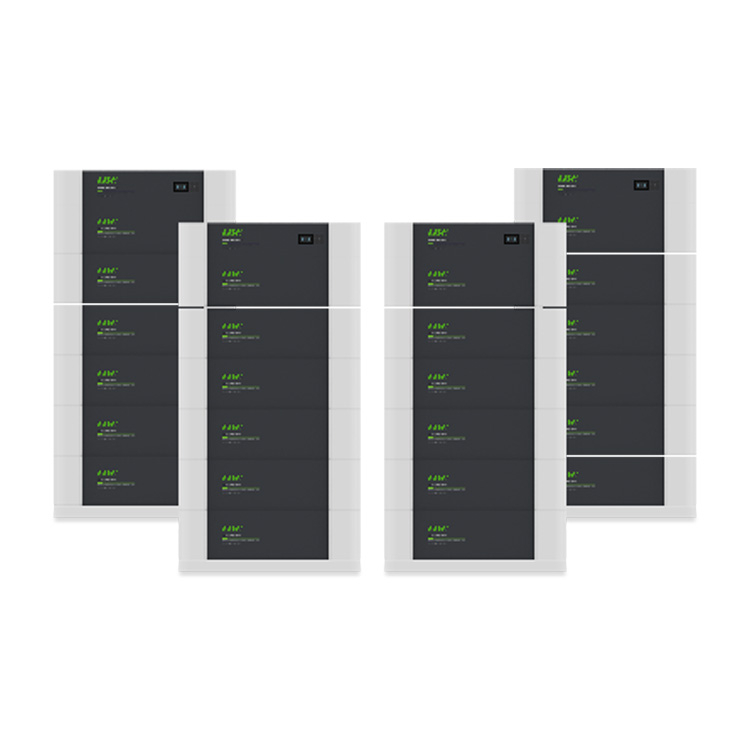

Scalability: Energy storage packs can be scaled up or down depending on the energy storage requirements of the application. Multiple packs can be connected in parallel to increase the overall storage capacity, providing flexibility for different energy storage needs.
FAQ
Q1: What are there included for a battery or pack , may I buy charger from you?
A1: Battery case, BMS, battery pack, can buycustomzied connector, charger
Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.
Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payement, bulk in 10-25 days depends on the quantity
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales person to check the best option for you.
Q4. What is your warranty?
A4: We offer 10 years warranty for all our battery pack for different situation. We ensure at least 6000 cycle life for the LiFePO4 battery pack, which means you can use it for at least 10 years for normal 1 time charge and discharge everyday.
