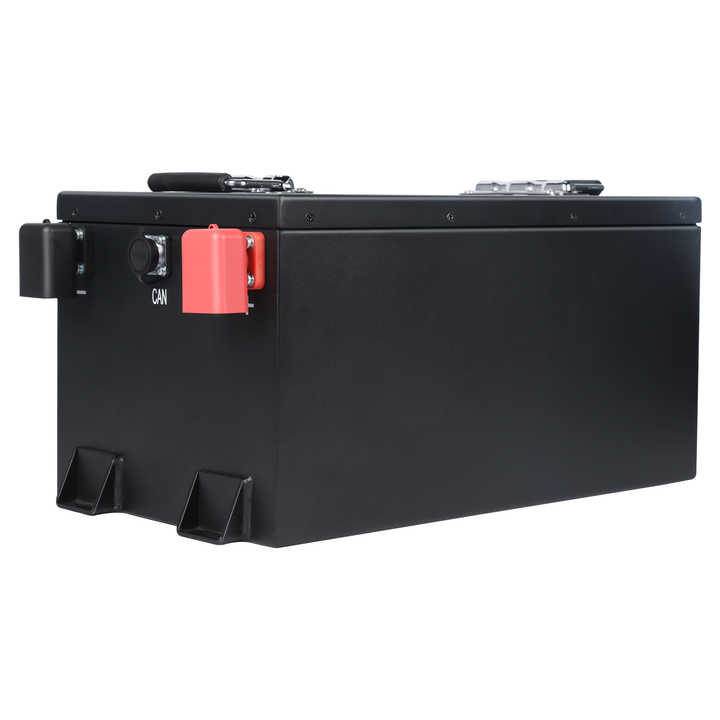

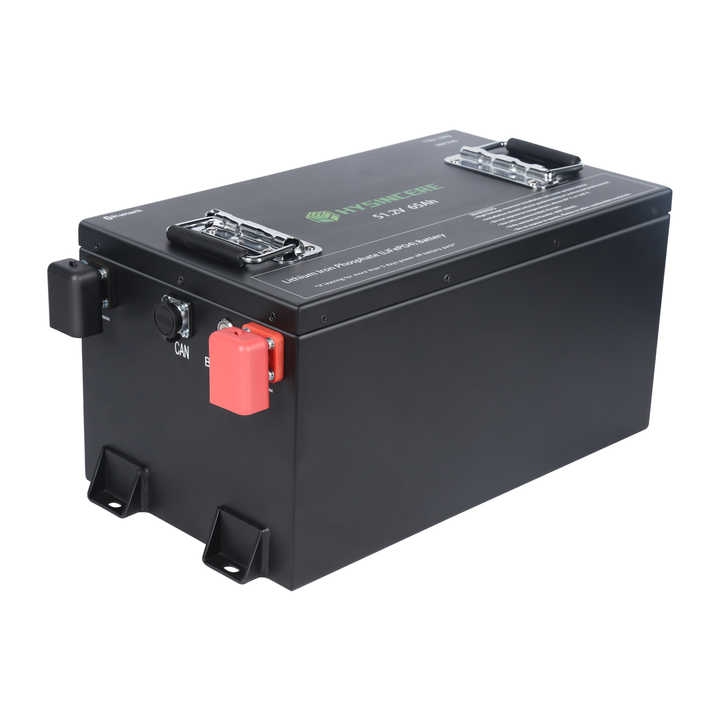

LS76105
LISH
Availability: | |
---|---|
Quantity: | |
Model | HX51105W | HX51105S | HX5165S | HX51150S | LS76105 |
Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 76.8V |
Nominal Capacity | 105Ah | 105Ah | 65Ah | 150Ah | 105Ah |
Rated Energy | 5370Wh | 5370Wh | 3320Wh | 7680Wh | 5370Wh |
Maximum Charge Voltage | 58.4V | 58.4V | 58.4V | 58.4V | 87.6V |
Maximum Charge Current | 100A | 100A | 60A | 150A | 100A |
Maximum Continuous Discharge Current | 150A | 150A | 130A | 200A | 200A |
Maximum Peak Discharge Current (30 seconds) | 300A | 300A | 250A | 300A | 300A |
Discharge Cut-off Voltage | 43.2V | 43.2V | 43.2V | 43.2V | 43.2V |
Driving Mileage | 65-80km | 65-80km | 40-60km | 90-120km | 100-130km |
Charge Temperature | 0~+55℃ | 0~+55℃ | 0~+55℃ | 0~+55℃ | 0~+55℃ |
Discharge Temperature | -20~+60℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ |
Cycle Life (25℃, 0.5C, 100% DOD) | >6000 | >6000 | >6000 | >6000 | >6000 |
Terminals | M8 Nut | M8 Nut | M8 Nut | M8 Nut | M8 Nut |
Protection Level | IP67 | IP65 | IP65 | IP65 | IP65 |
Dimensions(mm) | 547*334*245 | 457*298*253 | 465*243*228 | 675*325*260 | 674*338*275 |
Weight | 48.3kg | 49kg | 32kg | 71kg | 72.8kg |
Communication Protocol | CAN/RS485 | RS485 | RS485 | CAN/RS485 | CAN/RS485 |
Product Review

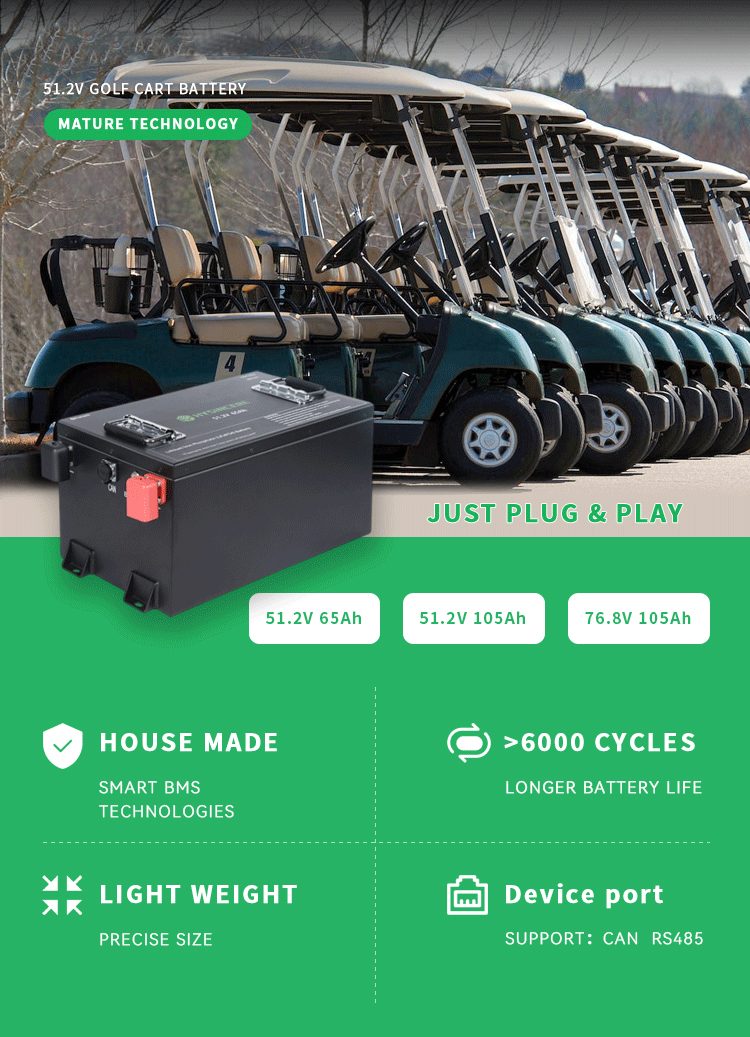

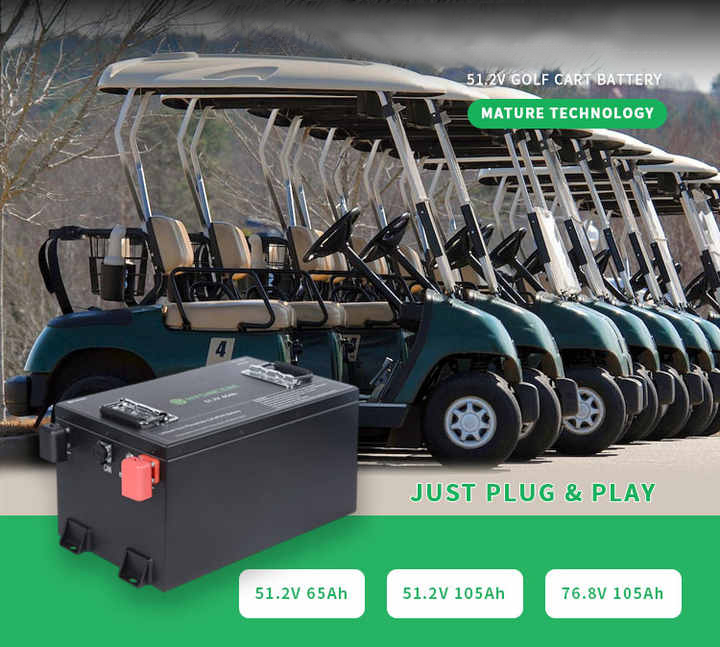

A lithium-ion rechargeable battery pack for golf carts with a voltage of 51.2V is a high-performance and long-lasting power solution specifically designed for golf cart applications. Here are some key features and benefits of a lithium-ion rechargeable battery pack for golf carts:
High Voltage: The 51.2V voltage of the battery pack is specifically tailored for golf cart applications, providing the necessary power to run the cart efficiently and effectively.

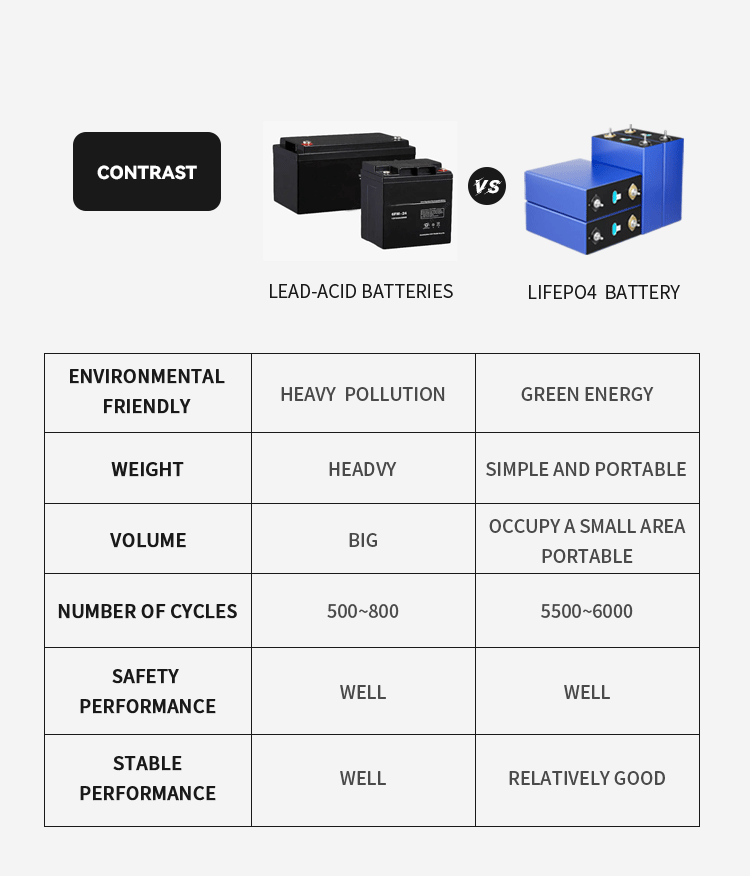

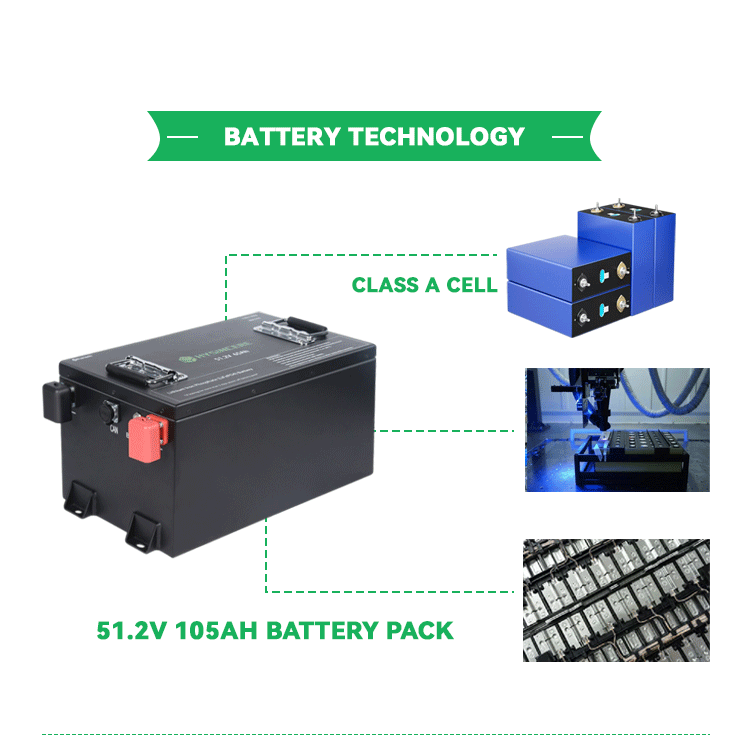

Lithium-Ion Technology: The battery pack utilizes lithium-ion technology, which offers several advantages over traditional lead-acid batteries. Lithium-ion batteries are lighter, have a higher energy density, and provide a longer lifespan compared to lead-acid batteries.
Rechargeable: The lithium-ion battery pack is rechargeable, allowing for multiple cycles of use. It can be easily charged using a compatible charger, ensuring that the golf cart is always ready for use.
Application
The battery pack for golf carts with a voltage of 51.2V is specifically designed for powering golf carts and offers several applications and benefits in this context. Here are some key applications of a 51.2V battery pack for golf carts:
Golf Courses: The primary application of a 51.2V battery pack is on golf courses, where it powers electric golf carts. These battery packs provide the necessary energy to drive the golf cart around the course, allowing players and their equipment to move effortlessly from one hole to another.
Golf Tournaments: During golf tournaments, where multiple rounds of golf are played in a day, the battery pack ensures that the golf carts can operate continuously without the need for frequent recharging. Thisenables smooth and uninterrupted play for participants.
FAQ
Q:Are you the manufacturer?
A:Yes, we are a power station manufacturer with experience in OEM/ODM projects.
Q:What certificates do you have for your mobile power plant products?
A:Obtain CE, FCC, ROHS and other certifications, and can meet the import requirements of most countries.
Q:If I want to do my own design, what format file do you need?
A:We support custom logo, the MOQ is 50 pieces. Please contact us for more customization requirements.
Q:Can your solar power products be shipped by sea or air?
A:We have our own warehouses in the United States, Europe, Canada, Japan and other countries, and will choose to deliver the goods to the nearest warehouse, generally 3-7 days to receive the goods.
Q:Can the power station be charged with solar panels?
A: Yes, of course. The power supply supports solar charging
Q:What is your quality assurance?
A:We have our own professional QC team, all our goods must pass 5 100% inspection before shipping. We offer a two-year product warranty.
Q:What are your company's strengths?
A;Factory price, best quality, perfect service, fast delivery, timely after-sales
