LS-500kwh
LISH
Availability: | |
---|---|
Quantity: | |
Specification:
Product Type | 1.9MW/3.8MWH | 3.8MW/7.6MWH | 1.26MW/2.5MWH | 2.9MW/5.8MWH |
basic parameters | ||||
Rated Power(KW) | 1668 | 3334 | 1260 | 2900 |
Rated Capacity(KWH) | 3801.6 | 7603.2 | 2580.48 | 5849.088 |
Charge/discharge Current Rate(C) | 0.5 | 0.5 | ||
Efficiency | ≥95% | ≥92.5% | ||
Cooling Method | Liquid Cooling | Forced Air Cooling | ||
Operating Temp | ‘-40℃~+70℃ | -30℃~+55℃ | ||
Protection Level | IP54 | IP54 | ||
Operating Altitude | no more than 3000m | no more than 3000m | ||
Cycle Life | ≥8000 | ≥6000 | ||
Dimension(L*W*H)(mm) | 6900*2438*2896 | (6900*2438*2896)*2 | 6095*2438*2896 | 12192*2438*2896 |
Weight(t) | 35 | 75 | 25 | 45 |
DC side parameters | ||||
Operating Voltage Range(V) | 1000-1500 | 1000-1500 | 600-900 | 1000-1500 |
Nominal Voltage(V) | 1267.2DC | 1267.2DC | 768DC | 1305DC |
Nominal Capacity(KWH) | 3801.6 | 7603.2 | 2500 | 5800 |
Serial Parallel Mode | 18S1P | 18S1P | 24S1P | 24S1P |
Nominal Charge/Discharge Current(A) | 1500 | 1500 | 840 | 2240 |
Grid side parameters | ||||
Nominal Voltage(V) | 400AC | 400AC | ||
AC Side Frequency(Hz) | 50Hz/60(adaptable) | 50Hz/60(adaptable) |
Product Overview

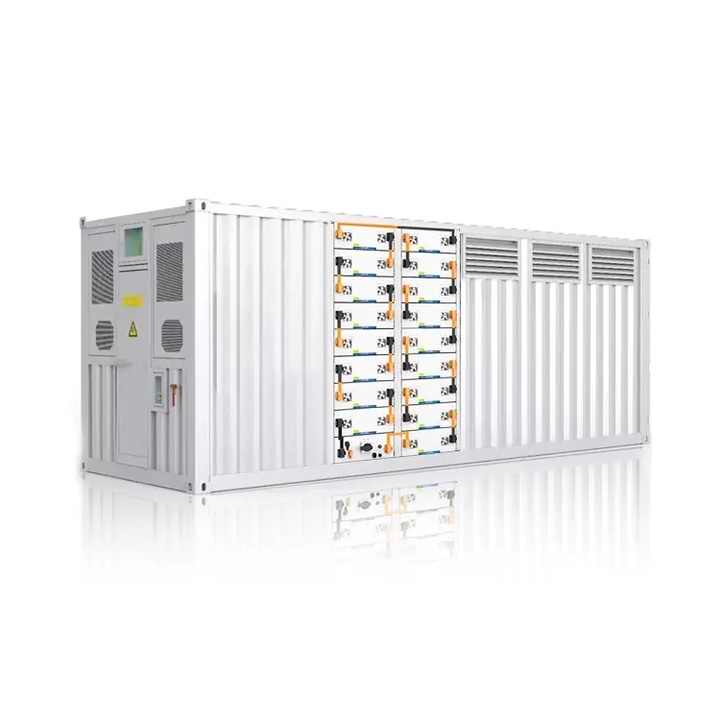

An industrial 500kW battery storage system is a large-scale power storage solution designed for industrial applications that require high power output and energy storage capacity. Here are some key features and benefits of an industrial 500kW battery storage system:
High Power Output: With a capacity of 500kW (kilowatts), this battery storage system can deliver a substantial amount of power, making it suitable for applications that require high power demands or peak shaving.
Energy Storage Capacity: The battery storage system is capable of storing a significant amount of energy, allowing for extended periods of power supply or backup power during outages or peak demand periods.
Scalability: Industrial battery storage systems are often designed to be scalable, meaning additional units can be added to increase the power output or energy storage capacity as needed. This flexibility allows for customization based on specific requirements.
Application
Renewable Energy Integration: The battery storage system can be used to store excess energy generated from renewable sources such as solar or wind power. This stored energy can be utilized during periods of low renewable energy production or high demand, ensuring a stable and reliable power supply.
Grid Stabilization: The battery storage system can provide rapid response power to stabilize the electrical grid during fluctuations in demand or supply. It can help balance the load, regulate frequency, and support grid stability, especially in areas with high renewable energy penetration.
Peak Shaving and Load Manage
ment: By storing energy during off-peak periods and supplying it during peak demand, the battery storage system can help reduce peak load on the grid. This can result in cost savings by avoiding expensive peak-demand charges and optimizing energy usage.
Emergency Backup Power: In industrial settings where continuous power supply is critical, the battery storage system can serve as a reliable emergency backup power source during grid outages or other unforeseen events. It ensures uninterrupted operations, preventing costly downtime and potential damage to sensitive equipment.
FAQ
1: How can we guarantee quality? |
A: Always a pre-production sample before mass production; Always final Inspection before shipment. |
2: What can you buy from us? |
A: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable energy storage power system, etc. |
3: Can you have a sample order? |
A: Yes, we welcome sample order to test and check quality. |
4: What about the lead time? |
A: Sample needs 10-15 days, mass production time needs 5-8 weeks, it depends on order quantity. |
Specification:
Product Type | 1.9MW/3.8MWH | 3.8MW/7.6MWH | 1.26MW/2.5MWH | 2.9MW/5.8MWH |
basic parameters | ||||
Rated Power(KW) | 1668 | 3334 | 1260 | 2900 |
Rated Capacity(KWH) | 3801.6 | 7603.2 | 2580.48 | 5849.088 |
Charge/discharge Current Rate(C) | 0.5 | 0.5 | ||
Efficiency | ≥95% | ≥92.5% | ||
Cooling Method | Liquid Cooling | Forced Air Cooling | ||
Operating Temp | ‘-40℃~+70℃ | -30℃~+55℃ | ||
Protection Level | IP54 | IP54 | ||
Operating Altitude | no more than 3000m | no more than 3000m | ||
Cycle Life | ≥8000 | ≥6000 | ||
Dimension(L*W*H)(mm) | 6900*2438*2896 | (6900*2438*2896)*2 | 6095*2438*2896 | 12192*2438*2896 |
Weight(t) | 35 | 75 | 25 | 45 |
DC side parameters | ||||
Operating Voltage Range(V) | 1000-1500 | 1000-1500 | 600-900 | 1000-1500 |
Nominal Voltage(V) | 1267.2DC | 1267.2DC | 768DC | 1305DC |
Nominal Capacity(KWH) | 3801.6 | 7603.2 | 2500 | 5800 |
Serial Parallel Mode | 18S1P | 18S1P | 24S1P | 24S1P |
Nominal Charge/Discharge Current(A) | 1500 | 1500 | 840 | 2240 |
Grid side parameters | ||||
Nominal Voltage(V) | 400AC | 400AC | ||
AC Side Frequency(Hz) | 50Hz/60(adaptable) | 50Hz/60(adaptable) |
Product Overview
An industrial 500kW battery storage system is a large-scale power storage solution designed for industrial applications that require high power output and energy storage capacity. Here are some key features and benefits of an industrial 500kW battery storage system:
High Power Output: With a capacity of 500kW (kilowatts), this battery storage system can deliver a substantial amount of power, making it suitable for applications that require high power demands or peak shaving.
Energy Storage Capacity: The battery storage system is capable of storing a significant amount of energy, allowing for extended periods of power supply or backup power during outages or peak demand periods.
Scalability: Industrial battery storage systems are often designed to be scalable, meaning additional units can be added to increase the power output or energy storage capacity as needed. This flexibility allows for customization based on specific requirements.
Application
Renewable Energy Integration: The battery storage system can be used to store excess energy generated from renewable sources such as solar or wind power. This stored energy can be utilized during periods of low renewable energy production or high demand, ensuring a stable and reliable power supply.
Grid Stabilization: The battery storage system can provide rapid response power to stabilize the electrical grid during fluctuations in demand or supply. It can help balance the load, regulate frequency, and support grid stability, especially in areas with high renewable energy penetration.
Peak Shaving and Load Manage
ment: By storing energy during off-peak periods and supplying it during peak demand, the battery storage system can help reduce peak load on the grid. This can result in cost savings by avoiding expensive peak-demand charges and optimizing energy usage.
Emergency Backup Power: In industrial settings where continuous power supply is critical, the battery storage system can serve as a reliable emergency backup power source during grid outages or other unforeseen events. It ensures uninterrupted operations, preventing costly downtime and potential damage to sensitive equipment.
FAQ
1: How can we guarantee quality? |
A: Always a pre-production sample before mass production; Always final Inspection before shipment. |
2: What can you buy from us? |
A: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable energy storage power system, etc. |
3: Can you have a sample order? |
A: Yes, we welcome sample order to test and check quality. |
4: What about the lead time? |
A: Sample needs 10-15 days, mass production time needs 5-8 weeks, it depends on order quantity. |
